At 14:24 on August 22, 2023, the command center of the Tianjin Fire Rescue Corps received an alarm: The exterior wall of Xintiandi Building, Nanjing Road, Wanxing Street, Nankai District, Tianjin was on fire. After receiving the alarm, the Corps immediately dispatched 23 fire stations and the full-time headquarters of the Nankai and Heping Detachments. A total of 284 fire rescue personnel and 62 fire engines rushed to the scene. The full-time headquarters of the corps rushed to the scene to command the operation.
At 14:27, the fire rescue station in the jurisdiction and the full attendance headquarters of the detachment arrived at the scene one after another. After understanding, the building that caught fire on the scene was Xintiandi Building. This building is an office building with 27 floors above ground and 2 floors underground. In the fire extinguishing, the fire hydrant plays an important role, giving the firefighters sufficient water pressure and water volume during the fire extinguishing process. If there is a problem, the consequences will be disastrous
Problems with traditional fire hydrants
As far as my country’s current situation is concerned, problems such as fire hydrant damage and equipment aging have become increasingly prominent. Few people will notice whether the fire hydrant is normal or not. When it is time to use it, it is difficult to find it, and there may not be water when it is found. When fire rescue is caused, the timing of fire fighting is delayed. This kind of incident is not uncommon.
Meokon fire hydrant safety monitoring case
In the California Garden of Yubei District, Chongqing City, there is a place for Meokon MD-S952 wireless smart fire hydrant terminal.
The smart fire hydrant terminal can monitor the water pressure, knock-down, and leakage of fire hydrants throughout the day. It can realize real-time monitoring by no one on site, save labor costs, and solve the problems that require a lot of manpower to inspect and fire hydrants cannot be used in case of fire.

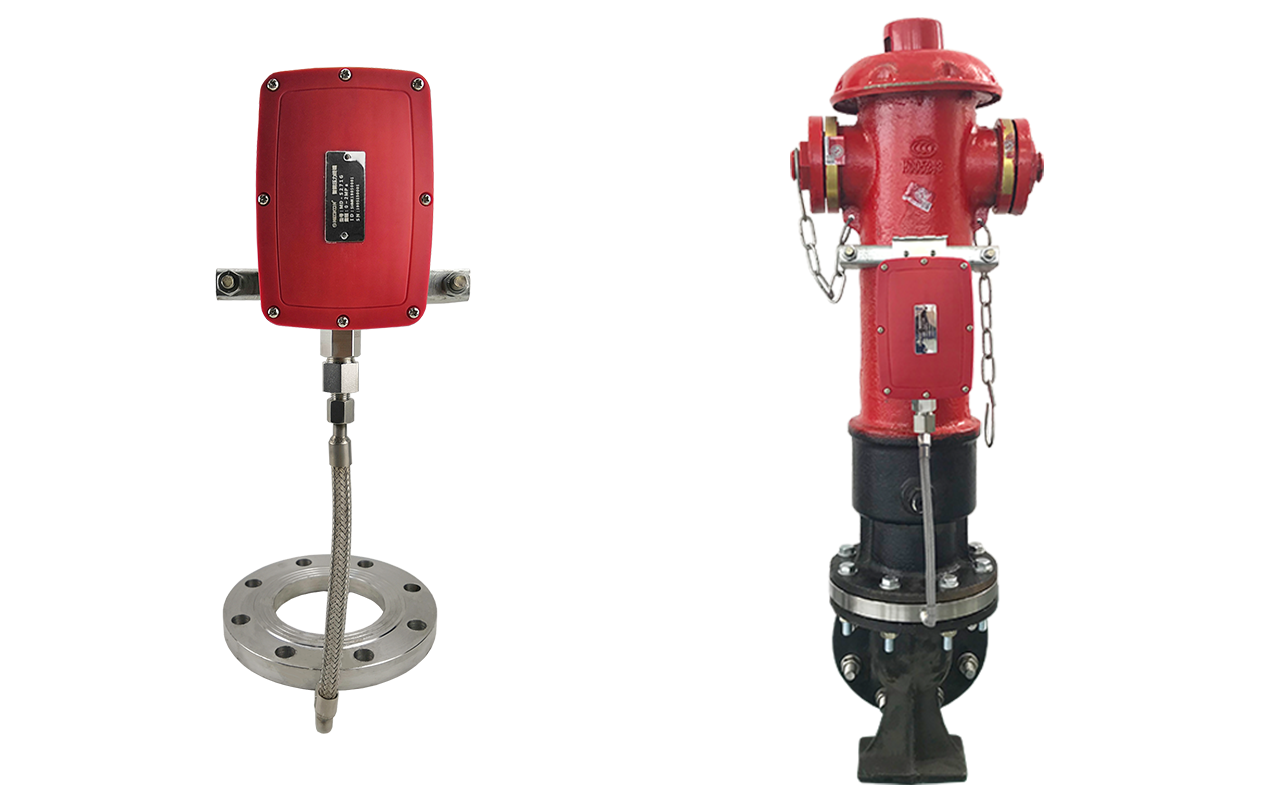

Smart fire hydrant monitoring terminal Smart fire hydrant monitoring terminal
NO.1>>>
MD-S952 wireless smart fire hydrant terminal is a smart product specially developed for the safety monitoring of water pressure in fire hydrants. This product has multiple functions such as high and low pressure alarm, fluctuating pressure alarm, anti-tilt, GPS positioning, low battery alarm, etc., to ensure that the fire hydrant has “water available and sufficient water pressure” at critical times.
Ultra-low power consumption design, powered by lithium battery, with a battery life of up to 5 years
Built-in wireless transmission module, 4G/LoRa/NB-iot multiple transmission methods are optional
The shell is designed to withstand 200kg strong external impact
IP68 waterproof grade certification, anti-low temperature test
Anti-freeze design to ensure that the harsh outdoor environment below -25C can still work normally
A variety of installation methods, equipped with a variety of accessories to ensure the portability of on-site installation
Low pressure alarm/fluctuating pressure alarm/low battery alarm/tilt alarm/collision alarm
Support platform remote configuration and Bluetooth debugging function.
NO.2>>>
MD-S951 intelligent fire hydrant cover is a wireless intelligent terminal developed for real-time monitoring of fire hydrant status. Real-time monitoring of status such as water theft, dumping, impact and other behaviors, rapid response and timely alarm. Built-in wireless transmission module, optional Bluetooth positioning or GNSS positioning. Water outlet alarm, cover opening alarm, and impact alarm information are transmitted to the centralized control center through the wireless transmission module, realizing remote supervision of fire hydrant leakage and water theft.
Ultra-low power consumption design, powered by lithium battery, with a battery life of up to 5 years
4G/LoRa/NB-iot multiple transmission methods are optional
Water release alarm/tilt alarm/cover opening alarm/collision alarm
The installation diameter is 100mm, no need to change the fire hydrant structure, and quickly replace the original fire hydrant
Beautiful design, strong and durable, impact resistance, convenient construction
Meokon has a number of intelligent sensing hardware and data acquisition terminal experience cases in the field of intelligent fire protection. Online monitoring of immersion, air quality, etc.
Post time: Aug-28-2023
