New Product Ceramic Pressure Sensor with Stable Performance

Short Description:

Low cost, small size, easy to install
Range width: minimum-3~3KPa, maximum0~1.6MPa
The comprehensive accuracy of 0~85ºC up to 1.5%FS
Storage temperature-20~120 ºC, working temperature 0~100 ºC


Product Detail

Product Tags

MD-SW101 series of small water pressure sensor is composed of  silicon differential pressure sensor CPD series and add a plastic shell.The CPD series of silicon differential pressure sensor is a circuit module composed of silicon differential pressure sensor chip and ASIC, which is encapsulated on 11*11mm Al2O3 ceramic substrate.MD-SW101 series is a bulk and low-cost civil product, which is mainly used in water treatment industry, with small volume, light weight, compact structure and good stability.The sensor rang is 3~1600KPa, the supply voltage is 5±0.25V, the typical current is 2.3mA. The output is 0.5~4.5V, and the maximum error is 1.5%FS in the range of temoerature 0~85ºC.



Technical characteristics:

Low cost, small size, easy to install

Range width: minimum-3~3KPa, maximum0~1.6MPa

The comprehensive accuracy of 0~85ºC up to 1.5%FS

Storage temperature-20~120 ºC, working temperature 0~100 ºC

The medium has good compatibility and can be used in gas, water and oil environment
The pins, gold wires and circuits are on the opposite side, which are isolated from the measuring medium and high reliability
Applications:

Water purification pipeline monitoring
Hydraulic control
Household appliances
industrial control
Building water supply

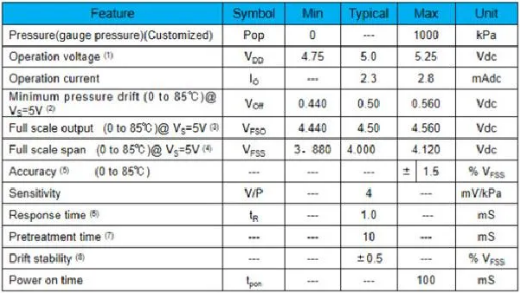

Specification:
