Meokon Professional Factory Wholesale Pressure Sensor Module

Short Description:

Automobile oil pressure
Water pressure sensor
Urea pressure sensor
Refrigerant pressure sensor
industrial control

Product Detail

Product Tags

MD-CB101 is a series of oil and gas pressure ceramic sensors specially designed for commercial vehicles, ships and construction machinery. Have features of high reliability, high precision, etc. The analog signal output after linearity check and temperature compensation is proportional to the supply voltage and a linear function with the input pressure, as a linear function of input pressure.The working pressure range of CB-0100-SDH is 0~10Bar gauge pressure, The corresponding output voltage range is 0.5 ~ 4.5V.

Technical characteristics:

Maximum 1.5% error in the range of 0~85ºC

Temperature compensation range -40~125ºC

Operation voltage: 5±0.25V

High voltage 10V protection, reverse connection protection

High reliability, low drift

Applications:
Automobile oil pressure
Water pressure sensor
Urea pressure sensor
Refrigerant pressure sensor
industrial control

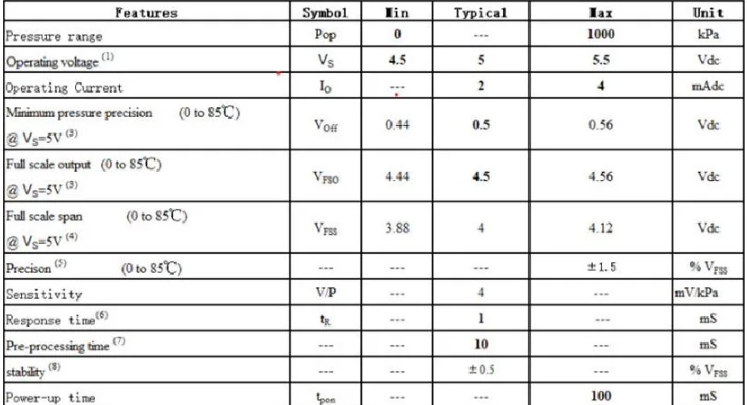

Specification:
