Product Description:

This gauge is a high-precision and intelligent digital pressure gauge with data record. It has a high- precision sensor and displays the pressure accurately in real time, equipped with a large size LCD. It has a various of features, such as zero clearing, backlight, on/off button, record time setting, On/off record units, low voltage alarm. And it is convenient to install and easy to operate.

This product adopts SS304 materials of case and connector. It can be used to measure gas, liquid, oil and other non-corrosive mediums. It applies to these fields: portable pressure measurement, equipment supporting, equipment calibrations.

Technical Characteristics:

80mm diameter, 304 stainless steel case

 Timing acquisition, USB output, support data export

With data software, special data communication line

It can store up to 10,000 pcs data, It displays range when switch on

With pressure display bar, indicating the current pressure percentage, One-button zero-clearing function

Application:

Machinery and electronic industry

Instruments

Pressure laboratory

Mechanical engineering automation

Replacement of pointer pressure gauge

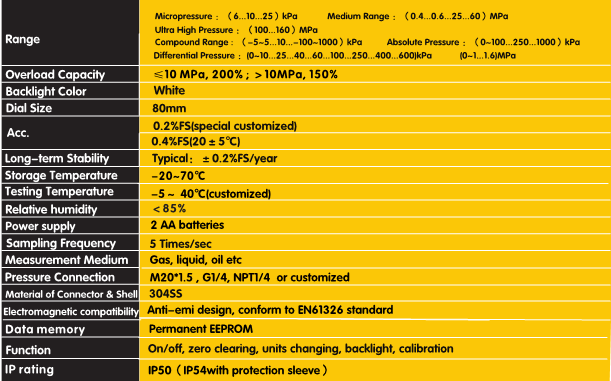

Specification:
