Meokon High Precision 4-20mA Pressure Transmitter Sensor For Water Oil Gas MD-G

Short Description:

MD-G101 series industrial pressure transmitter adopts the original imported diffusion silicon sensors, with wide temperature range compensation of -10 ~ 70 ℃, it has excellent temperature performance.


Product Detail

Product Tags

Product Description:

MD-G101 series industrial pressure transmitter adopts the original imported diffusion silicon sensors, with wide temperature range compensation of -10 ~ 70 ℃, it has excellent temperature performance.

This series of transmitters adopts instrument-grade amplifiers with strong anti-interference performance. The products have passed the intrinsically safe explosion-proof certification, which guarantees the use in various environments and climate

This series of products are used in various application scenarios that require high measurement accuracy, good long-term stability, and strong anti-interference performance.



Technical Characteristics:

Pressure range -0.1MPa~100MPa( optional)

316L stainless steel diaphragm, strong media compatibility

Multiple output signals are available: 4-20mA / 0-5V / 0-10V / RS485

Multiple connection and outlets are available



Applications:

Equipment automation

Construction machinery

Medical equipment

Pneumatic and hydraulic systems

Farm equipment

Hydraulic test stand

Test instrument  Energy and water treatment systems

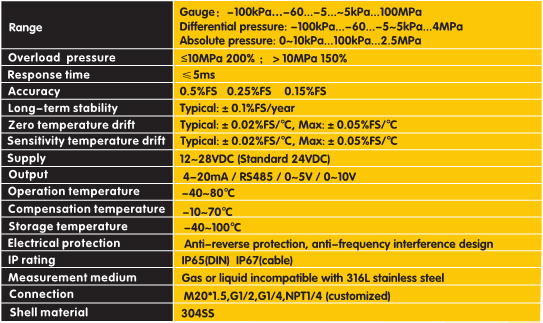

Specification

MD-G101 specification
