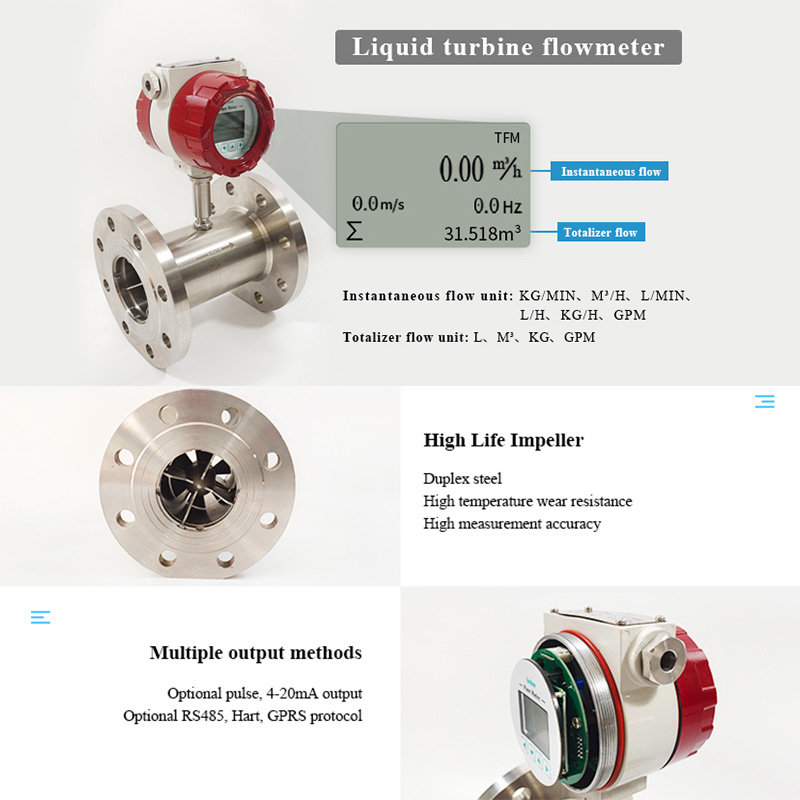

MEOKON Flange Turbine Flow Meter MD-S451L
Turbine-flow-meter is specially designed for usage in water, alcohol, diesel, gasoline and other fluid measurement and control systems. They operate according to the turbine principle, i.e. the speed of an impeller turning in the fluid flow is measured and converted into pulse or 4-20mA signals.
TECH PARAMETERS
| Nominal diameter: | DN6-300mm |
| Accuracy: | ±0.5% |
| Sensor Material: | SS304, SS316L Optional |
| Ambient Conditions: | Medium temperature:-20℃~+150℃ |
| Atmospheric pressure: 86Kpa~106Kpa | |
| Ambient temperature: -20℃~+60℃ | |
| Relative humidity: 5%~90% | |
| Signal Output | Pulse, 4-20mA, RS485, MODBUS; HART |
| Power Supply: 24V DC/3.6V Lithium Battery | |
| Protection class: IP65; IP68 Optional | |
| Explosion-proof class : Exd II BT6 or Exia II CT4 |
APPLICATION
Flow meter for fuel offers both standard SS304 body and SS316 body. Because of its wide working temperature and pressure range, it is capable of measuring various mediums and commissioning into extreme working conditions. Fuel oil turbine type flow meter are popular in the Oil & Gas industry, Chemical industry, and Water industry. The Flange connection version is compatible with High pressure/temperature commission sites.
It is widely used in industries such as petroleum, chemical industry, metallurgy, urban gas pipeline network, etc.
