Hydraulic Pressure Comparator Tester for Pressure Gauge Transmitter Sensors Calibration

Short Description:

The pressure pump should be used within the rated pressure range
as much as possible, and overpressure greater than the maximum
range of 10 MPa is prohibited


Product Detail

Product Tags

Product Description

1.Technical Parameter:
Pressure measuring medium:
pure water or special oil (choose one of two) Use temperature: 0 ~ 50 ºC
Dimensions: 3 0 0 × 2 2 0 × 1 8 0 (length × width × height)
Instrument weight: 3.9 kg
Pressure range: 0 ~ 1 0 / 1 6 / 2 5 / 4 0 / 6 0/70MPa

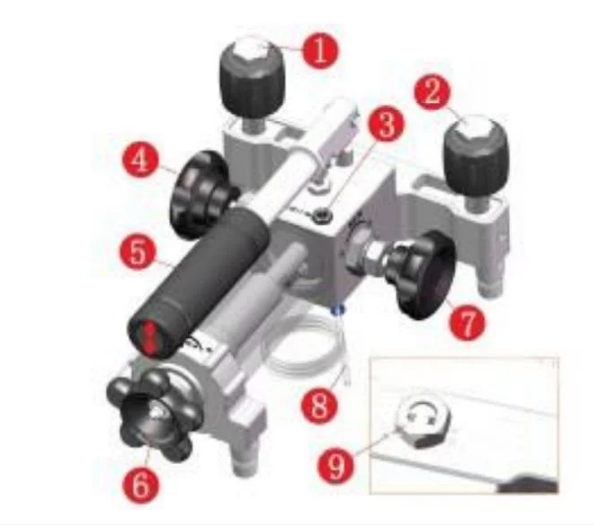

2.Shape Structure

NO. DESCRIPTION FUCTION
1 Standard table interface For connecting a standard pressure gauge (thread size M20X1.5)
2 Pressure test interface Connect the calibrated pressure instrument interface (thread size M20X1.5)
3 Liquid injection mouth cap Filling the pressure measuring medium into the liquid storage cup and exhausting the function
4 Shut-off valve Cut off the connection between the pressurizing pump and the detection part to keep the measurement part stable
5 Pressurized handle Lifting and pressing down
6 Pressurization and fine-tuning Supercharging/precise adjustment of applied pressure
7 Pressure relief valve Unscrew to release the pressure in the pump
8 Drain pipe The pressure relief valve is opened to discharge the pressure measuring medium, and the pipe head is inserted into the liquid injection port if it is not discharged.
9 Filter Filter the dirt on the output end and enter the pressure making system (clean it regularly according to the situation)

3. Common Problems & Solutions

PHENOMENON REASONS PROCESSING METHOD
Do not press up when pressing the handle 1. The pressure relief valve knob is not tightened 1. Tighten the pressure relief valve
2. The sealing ring in the quick connector falls off 2. Reinstall or replace with a new seal
3. The globe valve is not open 3. Open the shut-off valve
Minor leak 1. The quick connector is not tightened 1. Tighten the threaded joints everywhere
2. The sealing ring is worn or aged 2. Replace with a new sealing ring
3. The knob of the pressure relief valve is not tightened 3. Tighten the pressure relief valve
